DELUXE MODEL

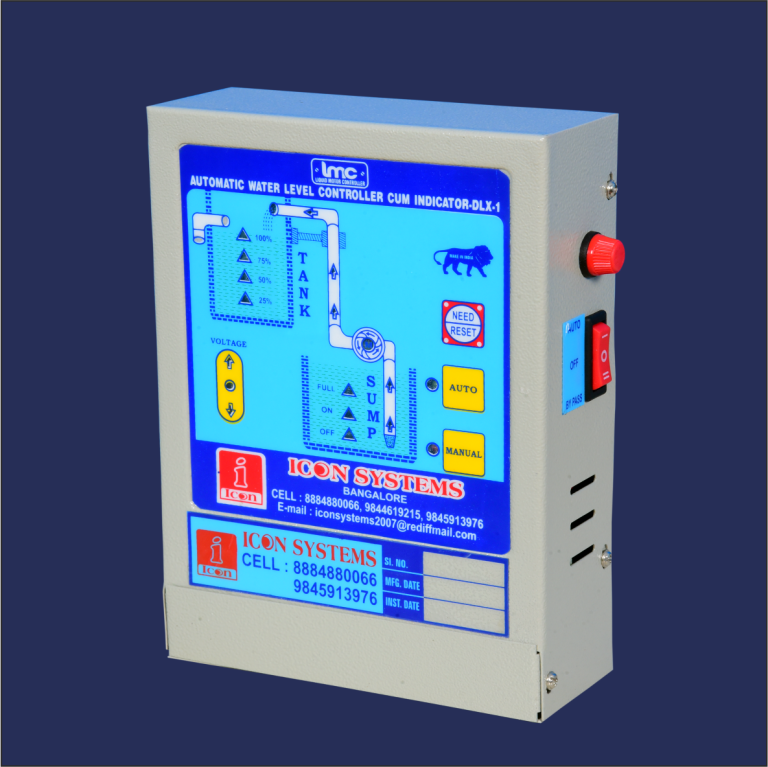

Deluxe_Model_DLX

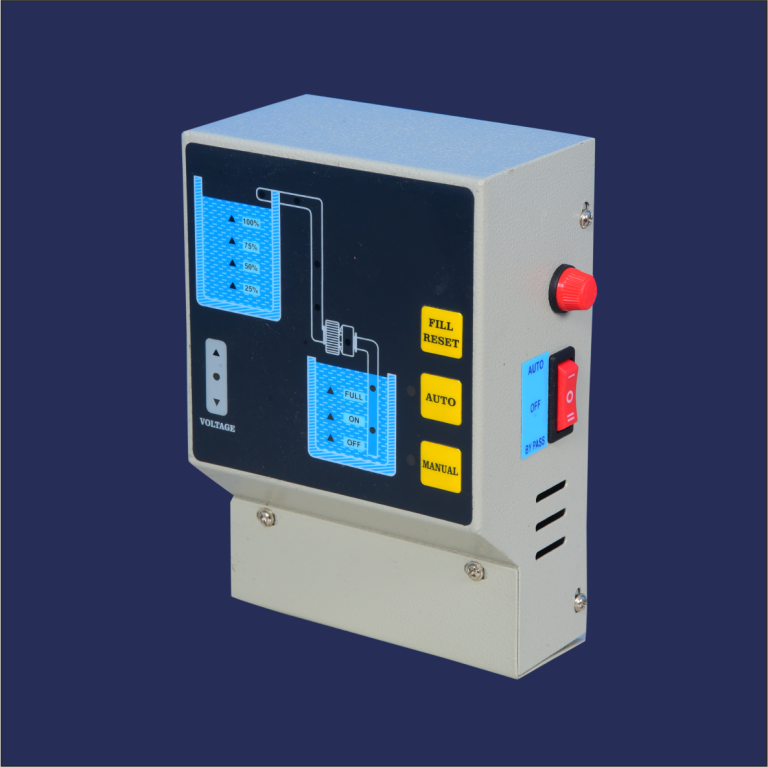

SEMI_DLX

DELUXE MODEL

  • ICON SYSTEMS (LMC) “OFF” the motor for the following reasons:
    • When the water reaches maximum level in the overhead tank.
    • When there is a low voltage or high voltage.
    • When the water in the sump goes below foot valve.
    • When the water stops flowing to the overhead tank.
    • When the switch is in OFF position.
  • ICON SYSTEMS (LMC) switches the motor ON if:
    • The water in overhead tank falls to prefixed low level i.e., below 75%, 50%, 25% as adjusted.
    • The sump is full irrespective of any levels in the overhead tank except 100%.
    • The switch is in manual position.
    • When the Motor is running and not yet full in OHT, in this stage if current goes and comes later – The Motor will get ON and fill up the OHT even though the water is above ON position in OHT.

Front Fascia of Li-Mo-Con

Shows clear indication of water levels in the overhead tank and sump tank.

Shows Voltage variation if any in the left bottom corner, it shows Green indicator for normal voltage, Red indicator for high or low voltage.

Has  switch to select Auto/Manual operations.

Shows motor ON indication with different colours at different modes of the unit. It shows Green indication in case of Auto mode, Red indication while Motor is under dry run condition.

Red  indication in case of  if Manual mode

Has soft touch NEED/ RESET button to switch ON the motor irrespective of any level in the overhead tank.

Shows Green indication upward arrow indication for flowing of water into the overhead tank.
